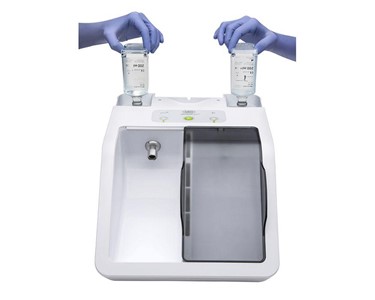

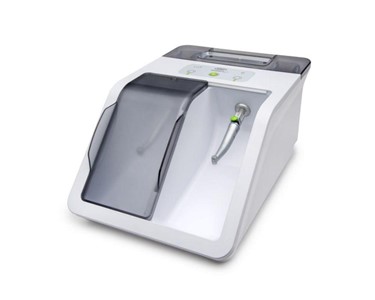

Assistina Twin with Quick Connect by W&H

Unique among maintenance devices
The Assistina Twin from W&H is unique among maintenance devices: with its innovative dual-chamber system, record time lubrication, Quick Connect and Blow-through function, it impresses all along the line.

Tailored to your needs
Thanks to the integrated Quick Connect by W&H, the Assistina Twin fits into your processes more smoothly and makes them even more efficient. Why? Because you can equip the maintenance device with exactly the adaptors you need for your transmission instruments.

Blow-through function
With the Blow-through function, Assistina Twin offers an optimal solution for drying the internal components of handpieces after the manual and automatic cleaning process.

Easy to dry: The Blow-through function uses compressed air to effectively minimise liquids from the handpieces.

Oil service without waiting time
Green light for better sustainability: with the Assistina Twin, waiting times during lubrication are a thing of the past. It is the first processing device equipped with two alternately usable process chambers, thus enabling non-stop loading. Prepare your transmission instruments easily and more efficient than ever!

Oil service in record time
With the Assistina Twin, you can maintain your instruments more quickly than ever before. Thanks to the innovative oil nebulization technology, W&H has succeeded in decreasing the maintenance process to a record time of just 10 seconds – for a speedy and incomparably thorough maintenance result.

An innovative system
The oil is nebulised before being blasted through the instrument at high pressure. This removes soiling from the inside of the instrument even more effectively. Thanks to the fine mist, every single part of the gear is wetted without having to set the gear parts into motion. All aerosols are removed from the process chambers through active suction and an integrated HEPA filter.

With the Assistina TWIN, waiting time during the oil service is a thing of the past. It is the first reprocessing device to be equipped with two process chambers that can be used alternately, thus allowing non-stop loading.

Practical for every practice
The Assistina Twin can be tailored to meet the individual needs of your dental practice. It can process up to 360 instruments per hour not just due to the innovative procedure with a short processing time, but also thanks to its ergonomic design and wide range of adaptors.

Groundbreaking technology
Thorough and comprehensive lubrication of the gear parts (orange) and cleaning of the spray channels (green) owing to the innovative oil nebulization technology.

Technical Data

• Process: Cleaning the spray channels, lubrication
• Suitable for: Straight and contra-angle handpieces, turbine handpieces, air scalers, air motors
• Supply voltage: 100–240 V AC
• Maximum power consumption: 18 VA
• Air consumption: Approx. 40 Nl/min.
• Operating pressure: 5–10 bar (controlled via an integrated, automatic pressure controller)
• Dimensions: 297mm (W) × 435mm (D) × 190mm (H)
• Weight: 3.5kg
• Capacity: 200 ml W&H Activefluid cleaning solution 200 ml W&H Service Oil F1
