Utilising the unique technology used in DRGEM’s universally recognized x-ray generators, JADE is a compact but powerful unit with a 4kW output and thoughtfully designed components to increase efficiency and maximize workflow.

The core part of x-ray source adopts high quality tube assembly, x-ray collimator and high frequency x-ray generator with excellent performance, durability, and stability.

Convenient and intuitive operation

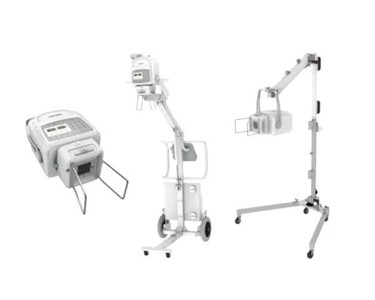

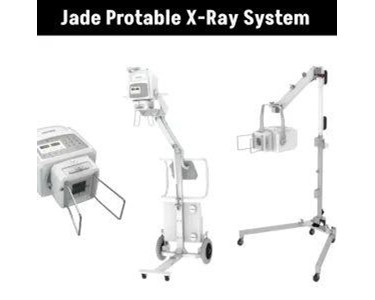

JADE is one of the lightest portable X-ray systems on the market, allowing it to be used in any imaginable way including bedside, operating rooms, intensive care units, and in veterinary fields.

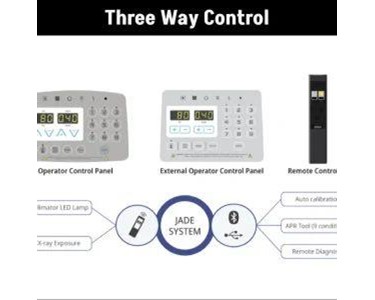

With a simple, easy-to-use operator console, three-way control, two-step foldable stand, and auto lock system, JADE is a user-friendly portable x-ray system.

DRGEM features

4kW, 100kHz, high frequency X-ray Generator
Maximum 120kVp / 0.1-250mAs
330-2,000mm FD
53.5kg including X-ray unit, collimator and stand
Maximum height of 228.6cm
Collimator with 30 second LED lamp timer
Exposure Hand Switch
Foldable, two-step stand
Vehicle loadable
Wheel lock
Automatic tube arm lock at any angle
Storage space for cassettes or detectors
User Programmable APR, save up to 9 APR settings
Three way X-ray exposure
USB interface & Bluetooth
Remote control (Option).

We also provide telephone and on-site support with a team of field engineers to maintain and keep your x-ray system in great health to ensure longevity.
