Advanced, low-dose bone density and body composition analysis with fast, precise results.

The system offers precise, low-dose measurements for both osteoporosis diagnosis and detailed patient assessment, with dedicated half-body composition analysis from shoulder to knee. It is an advanced solution for medical professionals requiring accurate body composition and bone mineral density data.

Included Package

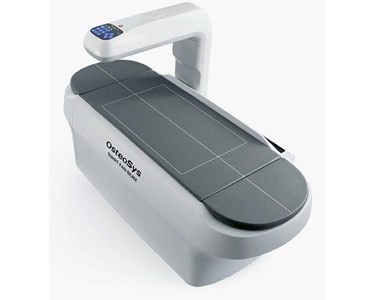

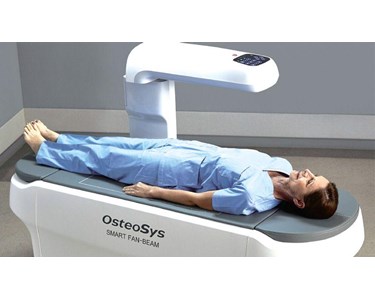

Half Body DXA Scanner (patient table, X-ray tube, generator, C-arm carriage)
Integrated CZT digital detector system
Bone density and body composition analysis software
Computer workstation (500GB HDD, 4GB RAM)
Bone Densitometry Operators Course (prerequisite requirements for Licensing or use)

Key Specifications

Technology	Dual X-ray Absorptiometry (DXA), narrow fan beam

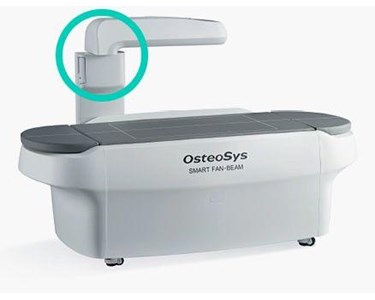

Swing Arm	Can be used as a standard table or in a chest X-ray room with swing arm function
Scan Sites	Half body, AP spine, femur (left/right), dual femur, forearm, lateral spine, LVA (VFA), orthopaedics, hand
Scan Area	800 x 480 mm
Scan Time	AP spine: 23 sec, Femur: 19 sec, Forearm: 18 sec, Half body: 3 min
X-ray Output	83 kV constant potential with K-edge filter
Detector	CZT (Cadmium Zinc Telluride) digital detector
Dimensions	1900 x 800 x 1230 mm
Weight	160 kg
Table Height	650 mm
Power Consumption	800 VA

Features

Accurate measurement of bone mineral density (BMD), fat mass, lean mass, and body composition
Advanced analysis including T-score, Z-score, BMC, BMI, and fracture risk (FRAX)
Automatic calibration and exclusion of artefacts (e.g. prostheses)
Low-dose imaging with high accuracy and reproducibility
DICOM compatibility for seamless PACS integration

To contact ATX Medical about OsteoSys Half Body DXA Body Composition and Bone Density System use Get a quote.
